Shipping containers sizes and their dimensions

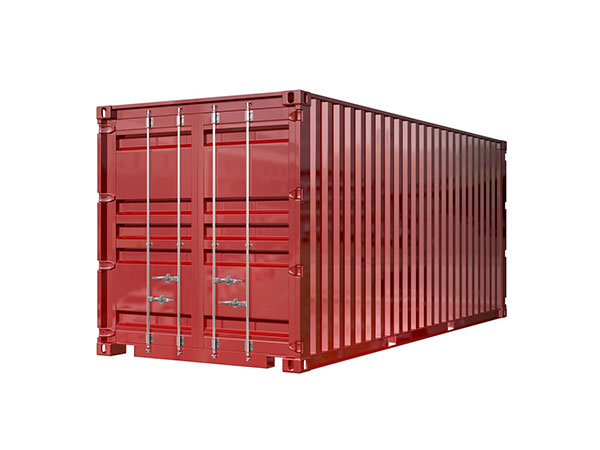

20-feet Dry Container Dimensions
|
| Container Reference Code: | 22GP |
| Container Application: | The 20-feet dry container is for general purpose cargo. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 8 ⅛" | 7' 6 ¼" | 20' |
| Door opening in meters | 2.34 m | 2.29 m | 6.096 m |
| Interior dimensions in feet | 7' 8 ⅝" | 7' 6 ¼" | 19' 4 ¼" |
| Interior dimensions in meters | 2.34 m | 2.29 m | 5.9 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 52,831 lbs | 4,914 lbs | 47,899 lbs |
| Weight in kg | 23,956 kg | 2,229 kg | 21,727 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 1,172 CFT | 33.2 CBM | |

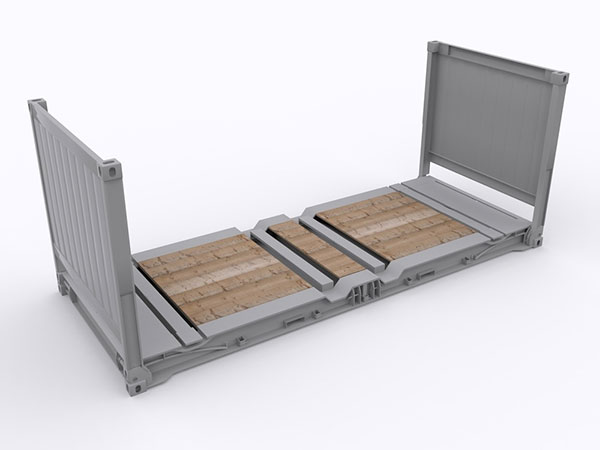

20-feet Flat Rack Container Dimensions
|
| Container Reference Code: | 22PC |
| Container Application: | The 20-feet flat rack container is for especially heavy loads, over-sized cargo, construction equipment, building supplies or heavy machinery. | ||
| Container Dimensions: | Width | Height | Length |
| Interior dimensions in feet | 8' | 7' 3 ⅞" | 20' |
| Interior dimensions in meters | 2.438 m | 2.233 m | 5.638 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 99,200 lbs | 6,400 lbs | 92,800 lbs |
| Weight in kg | 45,000 kg | 2,900 kg | 42,100 kg |
| Load Capacity | 1,154.3 CFT | 32.7 CBM | |

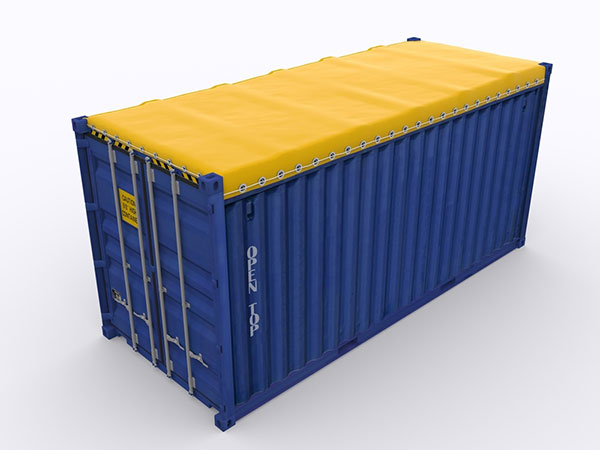

20-feet Open-Top Container Dimensions
|
| Container Reference Code: | 22U1 |
| Container Application: | The 20-feet open-top container is for over-height cargo and top loading. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 8 ⅛" | 7' 6 ¼" | 20' |
| Door opening in meters | 2.34 m | 2.29 m | 6.096 m |
| Interior dimensions in feet | 7' 8 ⅝" | 7' 10 ¼" | 19' 4 ¼" |
| Interior dimensions in meters | 2.352 m | 2.395 m | 5.9 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 52,897 lbs | 5,297 lbs | 47,619 lbs |
| Weight in kg | 23,994 kg | 2,394 kg | 21,600 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 1,172 CFT | 33.2 CBM | |

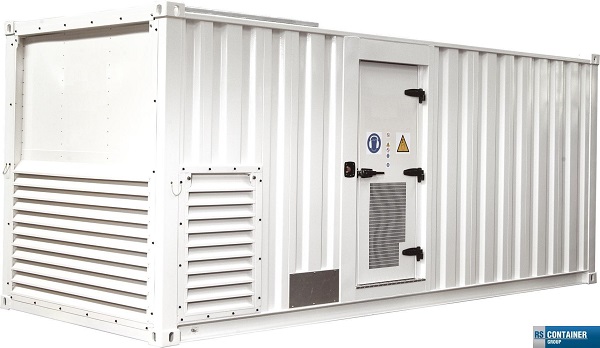

20-feet Ventilated Container Dimensions
|
| Container Reference Code: | 22VH |
| Container Application: | The 20-feet ventilated container is for cargo that requires ventilation, typically used to transport green coffee beans or similar cargo. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 8 ⅛" | 7' 6 ¼" | 20' |
| Door opening in meters | 2.34 m | 2.29 m | 6.096 m |
| Interior dimensions in feet | 7' 8 ⅝" | 7' 10 ¼" | 19' 4 ¼" |
| Interior dimensions in meters | 2.352 m | 2.395 m | 5.9 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 52,897 lbs | 5,297 lbs | 47,899 lbs |
| Weight in kg | 32,500 kg | 2,394 kg | 21,727 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 1,172 CFT | 33.2 CBM | |

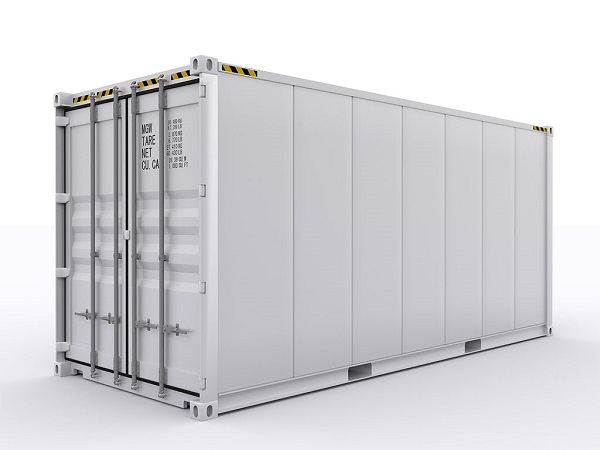

20-feet Refrigerated Container Dimensions
|
| Container Reference Code: | 22RT |
| Container Application: | The 20-feet refrigerated container is for cargo that requires temperature control. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 8 ⅛" | 7' 6 ¼" | 20' |
| Door opening in meters | 2.34 m | 2.29 m | 6.096 m |
| Interior dimensions in feet | 7'6" | 7' 4 ⅞" | 17' 11 ⅝" |
| Interior dimensions in meters | 2.28 m | 2.33 m | 5.45 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 67,200 lbs | 6,970 lbs | 60,230 lbs |
| Weight in kg | 30,480 kg | 3,160 kg | 27,320 kg |

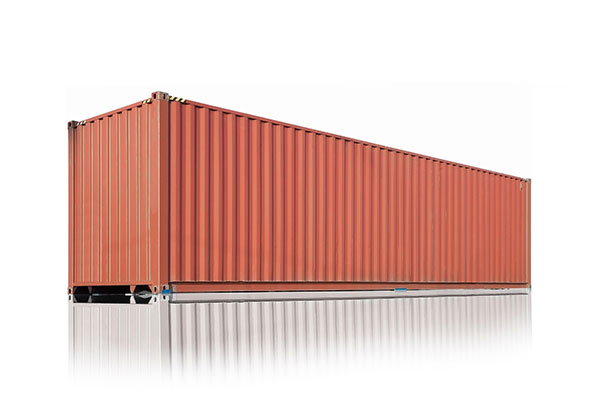

40-feet General Purpose Dry Container Dimensions
|
| Container Reference Code: | 42GP |
| Container Application: | The 40-feet dry container is for general purpose cargo. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 8 ⅛" | 7' 6 ¼" | 40' |
| Door opening in meters | 2.34 m | 2.29 m | 12.192 m |
| Interior dimensions in feet | 7' 8 ⅝" | 7' 10 ¼" | 37' 11 ¼" |
| Interior dimensions in meters | 2.352 m | 2.395 m | 12.01 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 67,199 lbs | 5,220 lbs | 59,039 lbs |
| Weight in kg | 30,481 kg | 3,701 kg | 26,780 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 2,389.75 CFT | 67.67 CBM | |
40-feet Open Top Container Dimensions
|
| Container Reference Code: | 42OT |
| Container Application: | The 40-feet open top container is for top loading for excessively long or high cargo. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 8 ⅛" | 7' 6 ¼" | 40' |
| Door opening in meters | 2.34 m | 2.29 m | 12.192 m |
| Interior dimensions in feet | 7' 8 ⅝" | 7' 10 ¼" | 39' 5 ⅝" |
| Interior dimensions in meters | 2.352 m | 2.395 m | 12.01 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 67,196 lbs | 8,487 lbs | 58,709 lbs |
| Weight in kg | 30,480 kg | 3,850 kg | 26,630 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 2,389.75 CFT | 66.67 CBM | |

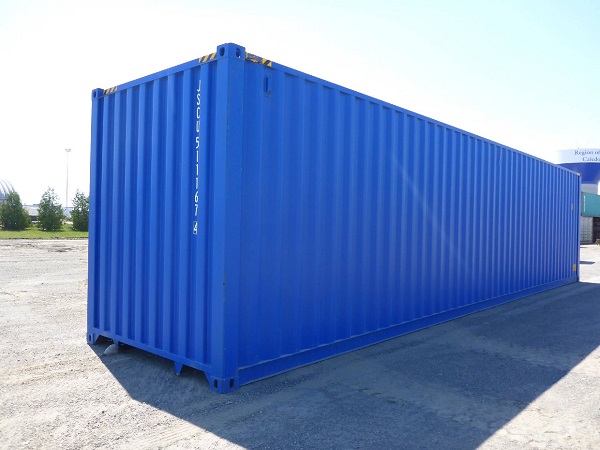

40-feet High Cube Container Dimensions
|
| Container Reference Code: | 40HQ or 40HC |
| Container Application: | The 40-feet High Cube container is larger than the 40-feet standard dry container. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 8 ⅛" | 8' 6 ¼" | 40' |
| Door opening in meters | 2.34 m | 2.56 m | 12.192 m |
| Interior dimensions in feet | 7' 8 ⅝" | 8' 10 ⅛" | 39' 5 ⅝" |
| Interior dimensions in meters | 2.352 m | 2.69 m | 12.01 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 67,196 lbs | 8,747 lbs | 58,448 lbs |
| Weight in kg | 30,480 kg | 3,968 kg | 26,512 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 2,694 CFT | 76.3 CBM | |

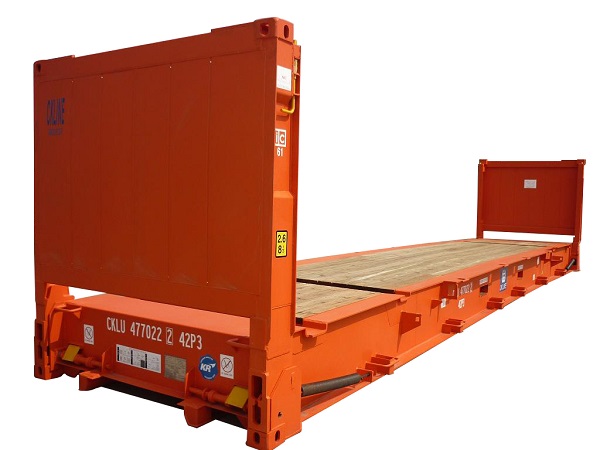

40-feet Flat Rack Container Dimensions
|
| Container Reference Code: | 42PC |
| Container Application: | The 40-feet flat rack container is for over-sized cargo, heavy machinery, construction equipment, or supplies. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | NA | NA | 40' |
| Door opening in meters | NA | NA | 12.192 m |
| Interior dimensions in feet | 7' 4" | 7' 5 ⅓" | 39' 3 ⅞" |
| Interior dimensions in meters | 2.23 m | 2.27 m | 11.98 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 98,326 lbs | 12,897 lbs | 85,429 lbs |
| Weight in kg | 44,600 kg | 5,850 kg | 38,750 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 1,860 CFT | 52.7 CBM | |

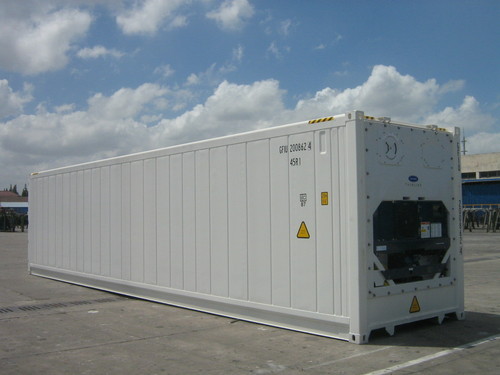

40-feet Refrigerated Container Dimensions
|
| Container Reference Code: | 42RT |
| Container Application: | The 40-feet refrigerated container is for cargo that requires temperature control or perishable cargo. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 5 ⅜" | 6' 11 ⅞" | 40' |
| Door opening in meters | 2.26 m | 2.13 m | 12.192 m |
| Interior dimensions in feet | 7'5 ⅜" | 7' 1 ⅞" | 37' 11 ¼" |
| Interior dimensions in meters | 2.26 m | 2.18 m | 11.48 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 67,053 lbs | 10,778 lbs | 56,275 lbs |
| Weight in kg | 30,415 kg | 4,889 kg | 25,526 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 2,039.7 CFT | 57.76 CBM | |

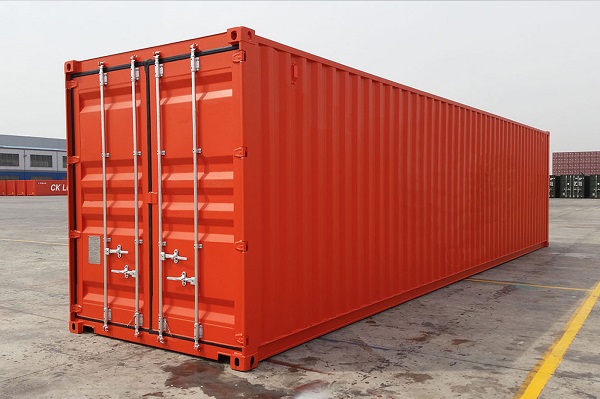

45-feet High Cube General Purpose Container Dimensions
|
| Container Reference Code: | L5GO |
| Container Application: | The 45-feet high cube dry container is for general purpose cargo. | ||
| Container Dimensions: | Width | Height | Length |
| Door opening in feet | 7' 9½" | 8' 5 ¾" | 45' |
| Door opening in meters | 2.37 m | 2.58 m | 13.716 m |
| Interior dimensions in feet | 7' 11" | 8' 10" | 44' 4 ¾" |
| Interior dimensions in meters | 2.41 m | 2.69 m | 13.53 m |
| Container Weight | Max Gross | Tare | Max Payload |
| Weight in lbs | 74,960 lbs | 10,910 lbs | 64,050 lbs |
| Weight in kg | 3,4000 kg | 4,950 kg | 29,050 kg |
| Container Volume | In CFT | In CBM | |
| Load Capacity | 3,122 CFT | 88.4 CBM | |

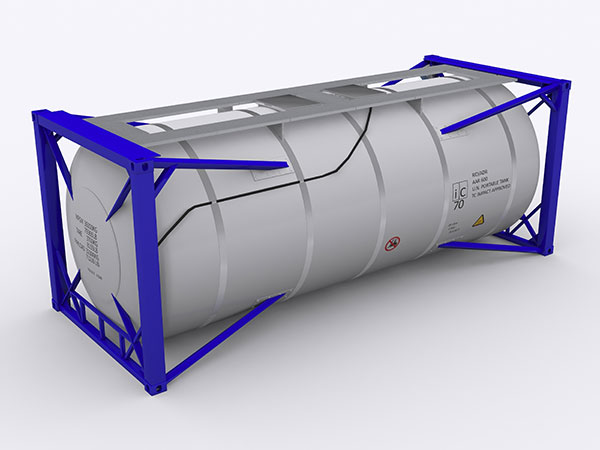

20-feet Tank Container Dimensions
|
| Container Reference Code: | 22TO |
| Container Application: | The 20-feet tank container is for food stuffs, oils, and chemicals. | ||
| Container Dimensions: | Width | Height | Length |
| Exterior dimensions in feet | 8' | 8' 6" | 20" |
| Exterior dimensions in meters | 2.43 m | 2.59 m | 6.09 m |
| Container Volume | In U.S. Gallons | In Liters | |
| Load Capacity | 6,450 gl | 26,001 lt | |
